Nilight 12 Gang Switch Panel 12V 24V Universal Circuit Control Relay System with RGB Backlight Fuse Relay Wiring Harness Automatic Dimmable ON Off LED Switch Pod for Car Pickup Truck Camper SUV
Product details
| Management number | 211844763 | Release Date | 2026/04/06 | List Price | $64.43 | Model Number | 211844763 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

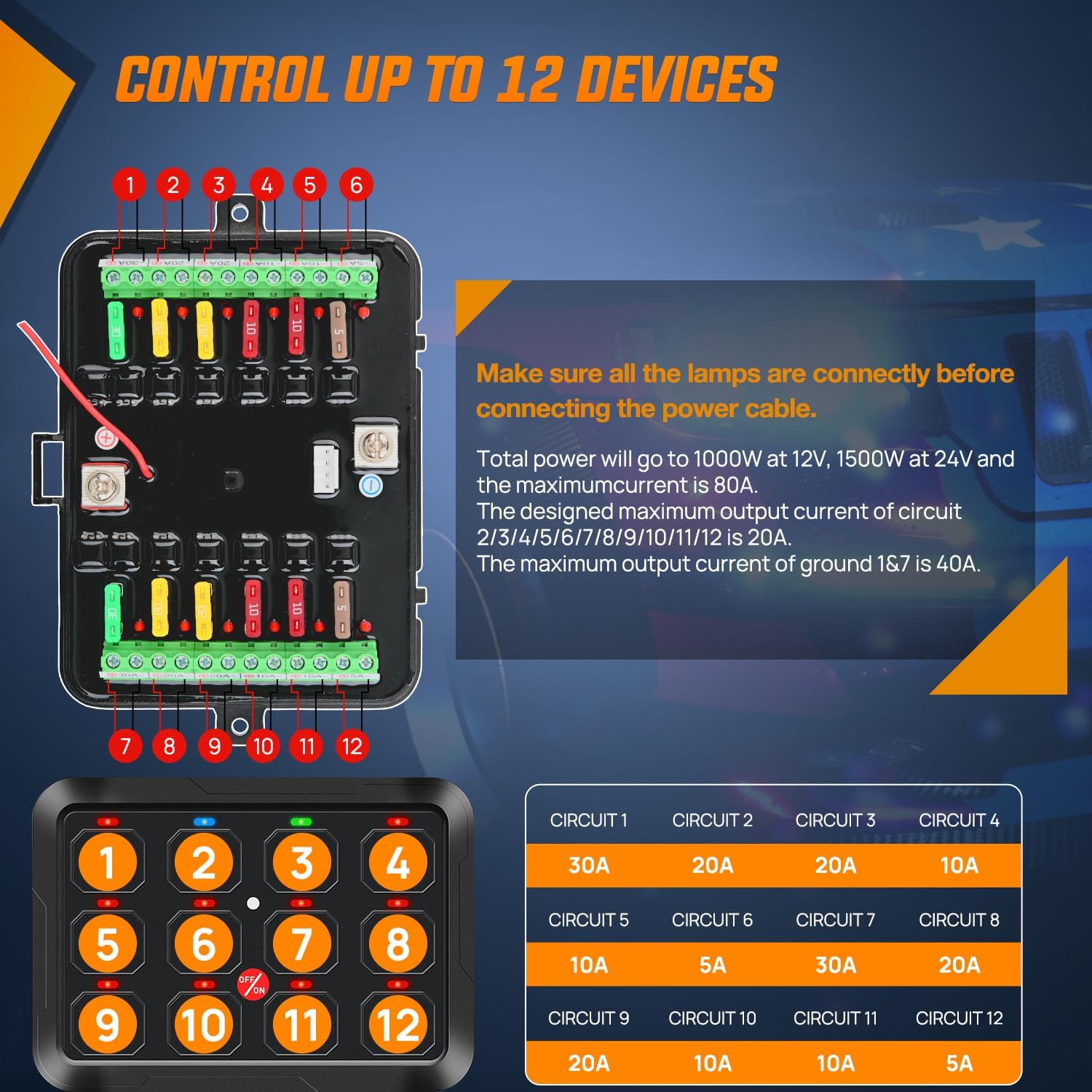

- 12 Gang Switch Panel System: Operating voltage: 12-24V DC, the max output power is rating at 1200 Watts. Allows you to control up to 12 different accessories at the same time. A perfect solution to clean up all messed up wiring harness and control everything through a switch pod
- Safety Design: The switch box is equipped with an 60Amp circuit breaker, blade fuses, and high-power solid-state relays. Providing you with thermal protection, overload protection, over-voltage protection, and over-current protection. The Solid-state relays are built into the circuit control box, rather than being exposed as usual. Much compact, waterproof, and saves space

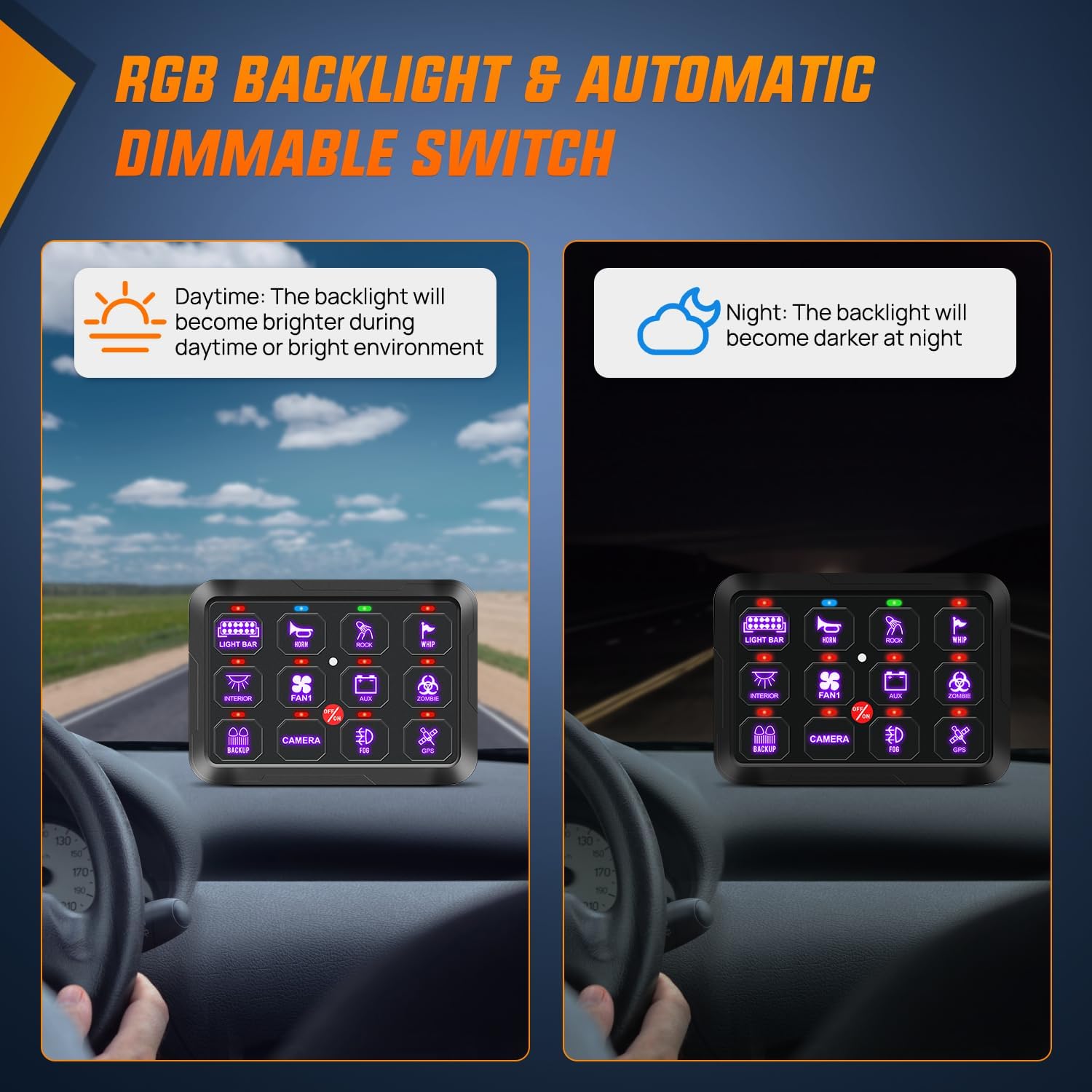

- RGB Panel Backlits & Automatic Dimmable: The panel can be set as different colors to meet your own need, you can select your favorite color according to different scene. Also, Not as dazzling as other switch panels. The Backlit of Nilight switch panel is adjust automatically according to the surrounding environment. Maintain the most comfortable visual brightness while driving
- Universal Fitment: This compact size switch panel system is perfect for all installation solutions. It can be installed in any 12-24V DC vehicles such as SUVs, RVs, Campers, ATVs, UTVs, RZRs SxS,4 Wheelers, Trucks, Boats, etc. The switch panel can be installed on the dashboard, center console, overhead sunglasses holder, etc. Don’t need to cut the hole, you can install it anywhere effortlessly

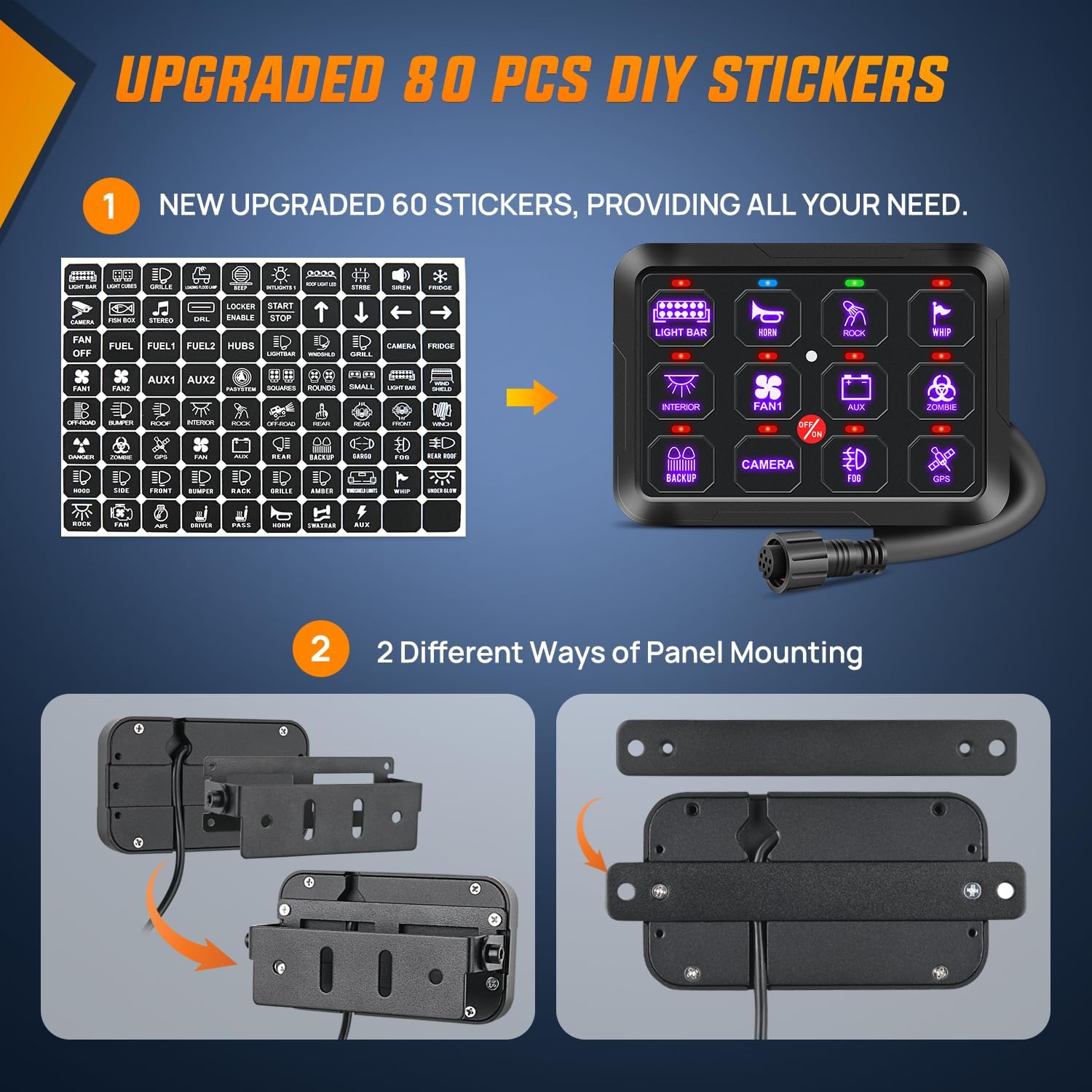

- All in one Design: The 6 gang switch panel system includes all installation hardwares even the add-a-circuit fuse tap. The packages includes a switch panel, circuit control box, blade fuses, extension wiring harness, power cable, circuit breaker, 80pcs reusable labels and mounting hardware for switch panel and control box. Which is designed to work together with better performance. Don’t needs to buy other parts
| UPC | 840323926300 |
|---|---|
| Color | RGB |
| Model | 90282L |
| Wattage | 1200 watts |
| Terminal | Screw |
| Brand Name | Nilight |
| Unit Count | 1.0 Count |
| Switch Type | Push Button |
| Circuit Type | 12-way |
| Contact Type | Normally Open |
| Manufacturer | Nilight |
| Material Type | Aluminum |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 80 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 10 x 6 x 2 inches |
| Number of Items | 1 |
| Contact Material | Brass |
| Operating Voltage | 12 Volts (DC) |
| Specification Met | UL |
| Included Components | 12 Gang Switch Panel System Set |
| Number of Positions | 8 |
| Upper Temperature Rating | 105 Degrees Celsius |
| International Protection Rating | IP54 |
